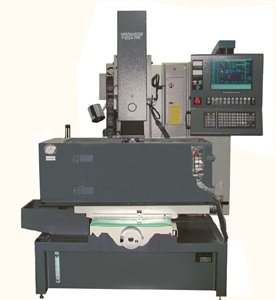

Type machine: ......................Y-505A TNC...............................Y-602A TNC
Travel distance X;Y;Z:...............300 x 200 x 200 mm....................400 x 300 x 200 mm
Max. size of work piece:...........600 x 300 x 340 mm.................2240 x 1050 x 700 mm
Head adjustment W:..................................200 mm ......................................200 mm
Max. weight of work piece:.........................300 kg.........................................400 kg
Max. weight of electrode:.............................60 kg.........................................100 kg
Tank size:...............................850 x 500 x 350 mm....................980 x 550 x 430 mm
Machine dimension:............1400 x 1200 x 2100 mm...............1600 x 1450 x 2120 mm
Generator unit:.........................................................................................................
Total power input:.........................................................................................3,5 kVA
Normal current :............................................................................................35 Amp
Dielectricum unit:.....................................................................................................
Capacity:..............................................................................................400/500 Liter Controller TNC:........................................................................................................
3 axes:..................................................................................................X, Y, Z axes
Data memory:...................................1000 memory places / 15 steps each programme
Monitor:.......................................................................................................14" CRT
Advantages:.PC-controller with digital generator, from which the
....................trigger voltage can be called over the generator
....................adjustment parameter. Different types of pulse are
....................possible (HM-Graphite etc.) Generator booster
....................mountable. All data are stored in the PC.
....................Programmable M-Codes are possible.
Controller:. 32-Bit CPU
..................1
..................APACK Erosion parameters
..................15 steps in one programme
..................Several jumping speeds
..................Fuzzy-logic
..................Digital Generator
................. large removal rate with low wear <0,1%
..................Graphite erosion 50% quicker than standard generator
..................special cycle for small taper rip electrode
