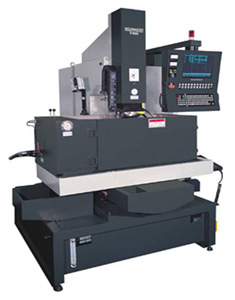

Type of machine: .............S-505A C15A/B C21 ............S-602A C15A/B C21
Travel distance X;Y;Z:..........300 x 200 x 200 mm..............400 x 300 x 200 mm
Max. size of work piece:......600 x 300 x 200 mm..............900 x 500 x 250 mm
Head adjustment W:.............................200 mm................................200 mm
Weight of work piece:...........................300 kg..................................400 kg
Accurary of linear scale:.............................1µm......................................1µm
Max. weight of electrode:.........................60 kg.................................100 kg
Tank size:......................860 x 1300 x 2300 mm.............1050 x 600 x 380 mm
Machine dimension:......1600 x 1600 x 2100 mm.........1720 x 1930 x 2200 mm
Advantages:... PC-controller with digital generator, from which the trigger voltage can be
........................ called over the generator adjustment parameter. Different types of pulse
........................ are possible (HM-Graphit etc.) Generator booster mountable.
Options: .......... C axis - elektrode changer - Ethernet connection.
Miscellaneous:
This machine is also available as polishing erosion machine.
........................ Whereby a special dielectric is used. But it is possible to change to normal
........................ erosion at any time.
Controller: 32-Bit CPU
.................. 14" clour Monitor
.................. RS232 und 3,5" floppy disk
.................. Graphical assistance when programming
.................. E-Pack for erosion parameter (material combinations)
.................. A-Pack for programme run (rough to fine)
.................. G and M code programmingnd M Code Programmierung
.................. Several jumping speeds
.................. Fuzzy-logic programmable
.................. Digital generator with different types of pulse
.................. 3 to 4 axes simultaneous-erosion
.................. 99 zero points
.................. Touch cycles (edge-block-hole-comer)
.................. Controller modular expandable (C15A bis C21)
.................. Large removal rate with low wear <0,1%
.................. Graphite erosion 50% quicker than standard generator
.................. Special cycle for small taper rip electrodes
