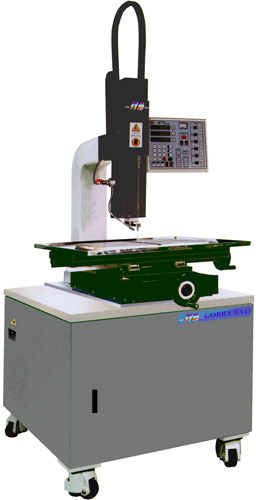

| Machine: | Cobra BA43 |
|---|---|
| Table size & workpiece height | 450 x 300 mm / 300 mm |
| Travel distance X and Y axis | 400 x 300 mm |
| Drilling axis travel distance Z axis | 310 mm |
| Head movement W axis | 280 mm |
| Tube diameter | dia 0,1 - 3,0 mm |
| Work piece weight | 300 kg |
| External dimensions | 1400 x 950 x 2050 mm |
| Weight of machine | 850 kg |
| Generator unit | |
| Max. power capacity | 3,0 kVA |
| Max. power output | 25 Amp |
| Dielectric unit | |
| Medium | Distilled water |
| Tank capacity | 80 litre |

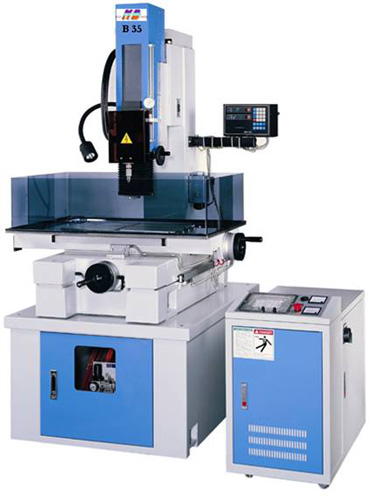

| Machine: | Cobra B25 | Cobra B35 | Cobra B65 |
|---|---|---|---|
| Travel distance X;Y;Z | 300 x 200 x 345 mm | 400 x 300 x 345 mm | 650 x 450 x 345 mm |
| Max. size of workpiece | 450 x 210 x 400 mm | 600 x 300 x 460 mm | 700 x 450 x 700 mm |
| Head ajustment W + Z2 | 200 + 150 mm | 200 + 150 mm | 350 + 150 mm |
| Weight of workpiece | 300 kg | 350 kg | 500 kg |
| Tube diameter | 0,2 - 4,0 mm | 0,2 - 4,0 mm | 0,2 - 4,0 mm |
| Tube length | 400 mm | 400 mm | 400 mm |
| Machine dimension | 1300 x 1100 x 2230 mm | 1750 x 1200 x 2230 mm | 1900 x 1500 x 2300 mm |
| Generator unit | |||
| Total power input | 3,5 KVA | 3,5 KVA | 3,5 KVA |
| Nominal current | 30 Amp | 30 Amp | 30 Amp |
| Dielectric unit | |||
| Working fluid | distilled water with dielectric | ||
| Capacity | 40 liter | ||
| Digital read out | |||
| 3 axis with Z-cutoff | X,Y,Z axis |
