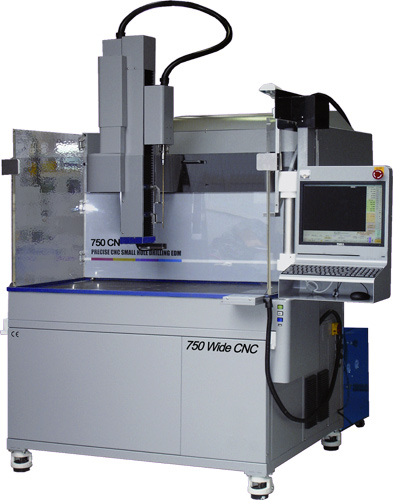

| Type of Machine: |
MB 750 CNC |
MB 1000 CNC |
MB 8000 CNC |
|
| Travel distance X;Y;Z |
750 x 450 x 650 mm |
1000 x 500 x 650 mm |
1300 x 800 x 650 mm |
| Max. Work piece size |
700 x 450 x 400 mm |
950 x 500 x 400 mm |
1250 x 800 x 400 mm |
| Head movement W |
360mm |
360mm |
360mm |
| Work piece weight |
1000 kg |
1000 kg |
1000 kg |
| Tube diameter |
0,2 - 3,0 mm |
0,2 - 3,0 mm |
0,2 - 3,0 mm |
| Tube length |
bis 600mm |
bis 600mm |
bis 600mm |
| External dimensions |
2200 x 2000 x 2700 mm |
2700 x 1300 x 2700 mm |
2850 x 1600 x 2700 mm |
| Machine weight |
1500 kg |
1500 kg |
2000 kg |
|
| Generator unit: |
| Max. power capacity |
4,5 kVA |
4,5 kVA |
4,5 kVA |
| Max. power output |
30 Amp |
30 Amp |
30 Amp |
|
| Dielectric unit: |
| Medium |
Water |
Water |
Water |
| Capacity |
100 l |
80 l |
80 l |
| Tube changer |
10 times |
15 times |
15 times |
Technical Specifications
CNC Controller
- 6 Axis
- Pentium 2,9 GB with Windows 7
- DVD Drive; USB; LAN
- 3,5 " Drive; Internet; RS 232
- 17 " colour screen
- Display X; Y; W; Z 0,001 mm
- A & B axis CA; CB 0,01 º
- Absolute & incremental programming
- Graphic on screen
- Program flow checking on screen
- Program storage Windows
- Process display on screen
- Automatic work piece position measurement
- Automatic zero point search
- DXF data can be transferred
- Remote control
- Intervening in the program
- Wear compensation
- Technology data in memory
- Automatic wear check
- Automatic control of breakthrough
Options
- A & B axis
- 50 Amp Generator
- 4 times Guide changer
Advantages:... Low investment costs,
.................high effectivity
.................easy operation
|
