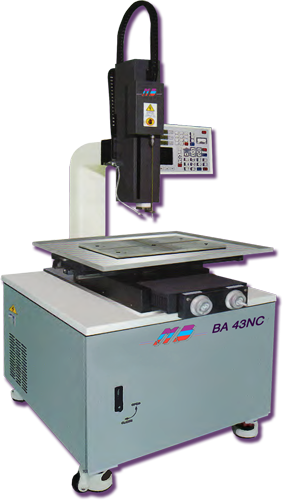

| EDM DRILLING MACHINE TYP COBRA BA 43NC | |
|---|---|
| Travel distance X and Y axis | 400 x 300 mm |
| Travel distance Z axis (Drilling axis) | 310 mm |
| Travel distance head | 280 mm |
| Distance table to guide | 20 – 300 mm |
| Table dimensions | 450 x 300 mm |
| Max. weight capacity | 300 KG |
| Generator output | 25 A |
| Tube diameter | 0,10 – 4,0 mm |
| Flushing medium tank | 80 ltr |
| Connected load | 3 kVA |
| Current connection | 3ph + N + E 400 V |
| Max. installation dimensions | 1400 x 950 |
| Max. machine height | 2050 mm |
| Machine weight | 850 kg |
