Technical data COBRA Mill 5A1
| Travel distance X;Y;Z axes | 300 x 230 x 150 mm |
| Travel distance A axis | +/- 28 ° |
| Travel distance B axis | 360 ° |
| Distance Table to Spindle | 150 mm |
| Centre distance B axis | 85 mm |
| Table size | 320 x 320 mm |
| Max. weight of workpiece | 100 kg |
| Feed rate max. | 6000 mm/min |
| Position feed max. | 8000 mm/min |
| Repeatability | 0,008 mm |
| Min. setting unit | 0,001 mm |
| AC Servo driver system X;Y;Z | 1,30 Nm |
| AC Servo driver system A;B | 0,64 Nm |
| HF milling spindle Jäger | 60000min-1 / 2,5 kW |
| max. mill diameter | Ø 6,0 mm |
| Number of tools of changer | 16 pieces |
| Dimensions W;D;H (without spindle cooler) | (1550) 1100 x 1200 x 1850 mm |
| Weight of machine | 800 kg |
| Input voltage (complete) | 5 kVA |
| Round holder with 2 insertion bore | Ø 100 mm |
| Sealed tank under machine | 1 piece |
| Suction ring on the spindle | 1 pieceØ 82 mm |
| Exhaust broom for the HF Spindle | 1 piece Ø 82 mm |
| Cold air blow unit for cooling of the tools | 1 piece HF 6-1 |
CNC-Control OSAI Open M HSC / MB
Hardware
| Fanless System | M6690/c |
| CPU Intel ® | 2 GHz |
| RAM | 2 GB |
| Axisboard | 6 axis OS8511 |
| Serial Interface | RS232/422/485 |
| Ethernet Interface | RJ45 10-100 MB/S |
| User memory | 1,8 GB |
| I/O Board | Ether CAT System |
Software
| Layout Builder WinNBI | Machineplot Ao3 |
| High Speed Interpolation | Systemhystory |
| Pathoptimizer | Table Editor |
| CNC Screen Emulator | Ethernet Connection CNC ~ PC |
| Boot Controller | Backup-Function |
Functions
| Kinds of interplotation | Linear, Circle |
| Program name | Free |
| Program test function | Automatical examination before program start |
| Max. Data size | max. 128 MB |
| Manual Program Input | MDI Standard |
| MDI-Memory function | Call of the last 6 implemented program inputs |
| Setting-up function | Edge, outside center, inside center, corner, 3 arbitarx points, twist center. |
| Program distribution | M98, M99 |
| Program diagnosis | Reference message of NC-Code-Input error |
| Machine instruction | M-Codes, T-Codes, G-Codes |
| Data instruction | New, secure, load, delete, select, re-name, water paper basket. |
| Edit instruction | Delete, extending/overwriting, range mark, shifting, copying, cutting out/inserting, searches, parts, file call, subroutine, file insert |
| Externe Data communication | Serielle Input, serielle Output, Print, Ethernet Network connection, Ether CAT connection. |
| NC-Program execution | Program execution – starting screen, excecution of called file, screen display/active operation keys during work, program execution over external input, pro control work. |
| Process monitor control | PC screen or control screen. |
| Remote supervision monitoring | Complete PC control screen, even over Internet |
| Erro monitor | Error list with disturbances, also of technician over remote maintenance requestable. |
| Report function (Option) | Dispatch from SMS reports to the operator. |

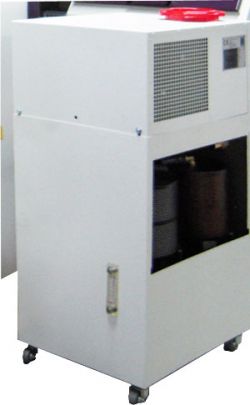

Wet-setup: |
| 2 large filters |
| Automatic changeover |
| Flow rate detection |
| Recognize of filter conditions |
| Ultra point flushing head |
