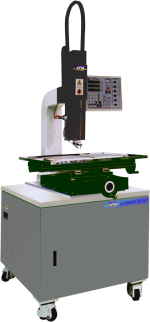

Technical Data COBRA BA 43
| Table dimension | 450 x 300 mm |
| Workpiece height | 300 mm |
| Drill axis traverse path Z Axis | 400 x 300 mm |
| Headmovement W Axis | 310 mm |
| Tube diameter | dia. 0,10 ~ 3,0 mm |
| weight of the workpiece | 300 kg |
| Size outside | 1400 x 950 x 2050 mm |
| Weight of the machine | 850 kg |
| Generator unit | |
| Power input max. | 3,0 KVA |
| Power output max. | 25 A |
| Dielectric unit | |
| Washing up liquid | deionized Water |
| Tank | 80 Liter |
